The PRISMA dosing pumps: the incomparable accuracy of the stepper motor – EMEC.
EMEC is proud to introduce the new stepper motor-driven dosing pump- PRISMA, the best solution for high-accuracy metering and extreme reliability.
Thanks to the new stepper motor and to the Multi-Function software, the PRISMA dosing pump offers complete control over dosing speeds. Working modes as well as great flexibility and repeatability, meeting even particularly complex application needs.
The PRISMA is also equipped with Level control, Alarms and Stand-by, while available working modes include Constant, Constant with external input, ppm, %, mlq, Pause-work, Weekly, mA, Pulse, Volt, external Batch and manual Batch.

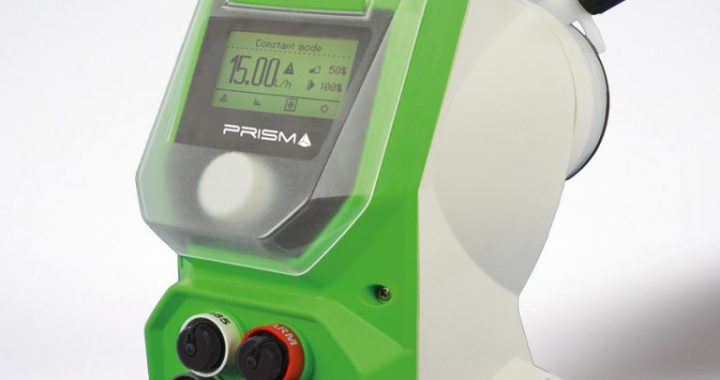

The PRISMA dosing pumps feature the encoder control knob for quick browsing through the configuration menus. A large display screen allows for easy control and to regulate the working parameters. By changing background colors the PRISMA back-light display is capable of signaling different working status: pump running (green); stand-by (white); warning condition (yellow); alarm condition (red).
The PRISMA stepper motor-driven pumps give you the most accurate control over the stroke speed, providing an outstanding turn-down ratio of up to 4800:1.
It means that the PRISMA, through its digital multi-function control, can split up the dosing process into a maximum of 4800 steps. This is in order to offer the most homogeneous and precise distribution of the product to dose according to the required application.
The extreme versatility of the PRISMA dosing pump is also due to Slow Mode function. With Slow Mode enabled you can reduce the suction speed to 75, 50 or 25% of the normal speed, making easier, more reliable and extremely accurate the priming and the dosing, even when you have to handle particularly viscous liquids.
The PRISMA stepper motor-driven pumps are available with dosing capacity of 5, 13, 28 and 80 l/h at a working pressure of 20, 10, 5 and 2 bar, respectively.
