Additives for metalworking-Based on more than 60 years of experience Additiv-Chemie Luers is an independent medium scale German producer of additives for metalworking fluids and cleaners.
CA 400 is an overbased calcium sulfonate, and EP/AW, and corrosion inhibitor component for use in corrosion preventives, metalworking fluids and lubricants. It is non staining and odour free. The product is also suited for use as TBN booster.
Application
CA 400 has high reserve basicity and therefore neutralizes corrosive acids. In corrosion preventives concentrations of 1-20% CA 400 can be used depending on the application. In metal forming operations for ferrous and non ferrous metals 5-10% are recommended. 20-30% CA 400 can be employed for heavy duty drawing operations. A combination with sulphur compounds may be useful.
Storage
Tightly closed drums can be stored indoors between 0°C and 40°C for a mini-mum of 12 months.
NA 480 T is an oil soluble synthetic sodium sulfonate, manufactured by a special process to secure a consistent quality. NA 480 T is effective as corrosion inhibitor, dispersant and emulsifier. (Corrosion protection increases by increasing mol. weight and the emulsifying properties decrease).
Tac-Oil AMW is a highly effective concentrate of polyisobutylene dissolved in white oil, which was developed to suppress the oil mist formation of cutting oils. This ability was proven in laboratory tests and practice. Besides this Tac-Oil AMW is used as tackifier in lubricants where too strong tackiness is not desired.
Application
The recommended concentration in mineral oil is between 0.5 – 2.0 wt.%, depending on the required performance.
Tac-Oil AMW is preferably blended at 60°C – 80°C in slow motion (low shearing) blending device.
The temperature stability of Tac-Oil AMW is about 150°C for limited time.
Storage
Tac-Oil AMW may be stored indoors in the sealed original package for a minimum of 12 months.
typ. value
Specification min.
max.
Density 15°C (g/ml)
0.870
0.860
0.890
DIN 51 757
Flash point PMCC (°C)
175
170
DIN EN ISO 2719
Viscosity 70°C (mPa·s)
1300
1700
DIN 53 015
The data contained herein serve as general information for our customers only and are not binding. The data contained herein have been collected to the best of our knowledge and do not constitute any advice or warranty to our customers for any specific application. It is up to our customer at their own risk to determine the suitability of each product for their individual purposes. The products are sold without any representation, warranty or guarantee either expressed or implied. Our liability is limited to the value of the supplied merchandise.
EM 5190 N is an emulsifier package based on boron and di-ethanolamines and can be used for the formulation of semi-synthetic, low foaming, watermiscible coolants with a low content of mineral oil.
Emulsifier EM 5190 N is free of EDTA and contains biocides. The product does not contain formaldehyde releasers.
Application

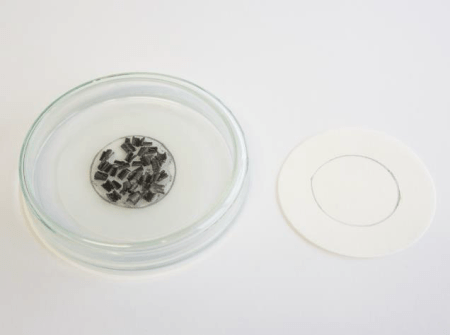

50 wt.% EM 5190 N can be blended with 50 wt.% demineralised water. The blend yields a stable concentrate with a pH-value of 9.4 in a 5% dilution. A 3% emulsion in hard water of 180 ppm yields 0 corrosion in the filter paper chip test according to DIN 51 360/2.
Storage
Storage EM 5190 N can be stored safely indoors between +15°C and +30C in properly sealed original packages for a minimum of 6 months.
Characteristics DM 466 is an oil soluble natural sodium sulfonate, manufactured by a special process to secure a consistent quality. DM 466 is effective as corrosion inhibitor, dispersant and emulsifier. (Corrosion protection increases with molecular weight and the emulsifying properties decrease.
Storage Tightly closed drums can be stored indoors between 0°C and 40°C for a minimum of 12 months.
typ. value
Specification
Specification
MIN
MAX
Colour
brown
Density 15°C (g/ml) :
1.02
1.00
1.03
DIN 51 757
Active matter (wt.%)
61
60
ACL-028
Mineral oil (wt.%)
34
32
36
calculative
Water (wt.%)
4.0
5.0
DIN 51 777-1
Inorganic salts (wt.%)
0.4 0.5
0.5
ACL-035
Average molecular weight
450
calculative
Flash point (°C)
min. 100
DIN EN ISO 2719
Colour (dil.10% in white oil)
3
ACL-014
The data contained herein serve as general information for our customers only and are not binding. The data contained herein have been collected to the best of our knowledge and do not constitute any advice or warranty to our customers for any specific application.
It is up to our customer at their own risk to determine the suitability of each product for their individual purposes. The products are sold without any representation, warranty or guarantee either expressed or implied. Our liability is limited to the value of the supplied merchandise.
