QMA Polypropylene Filter Series

“Absolute” Rated High Performance Pleated Polypropylene Filter Cartridge

This filter is manufactured with a multilayer, graded densityasymmetric melt blown polypropylene media. This unique structure allows for low initial pressure drop and high dirtholding capacity, and long high efficient service.

Filter Features–Benefits

Micron ratings from 0.20 to 10 μm– Broad application rang
Meets USP 24 Class VI biological test for plastics
“Absolute” Efficiency – Rated at 99.98% (Beta 5000)
Graded pore density – Multilayer, graded density media – asymmetric pores for high dirt holding capacity
High surface area – High flow rate, and long on-line service – Minimize maintenance cost
Fixed Pore construction – Eliminates dirt unloading at maximum differential pressure
Polypropylene Construction – Inert to many process fluids
Various Gasket/O-ring materials – Compatible with many fluids
Heavy duty molded cage – High structural strength

Applications

• Food & beverage • Aqueous solutions • Chemicals• Blowdown post filter • Pharmaceutical • Cosmetics • Magnetic tape coatings • RO Prefilters • Ink

FDA compliance
All polypropylene material used in manufacturing complies with the regulations of the FDA title 21 of the Code of Federal Regulations Sections 174.5, 177.1520, and 177.1630, as applicable for food and beverage contact.

Graver QMA Absolute Rated – Pleated Filter Download Brochure

TefTEC PTFE Membrane Filter Series

Absolute Rated PTFE Membrane Filter Cartridge

TefTEC cartridge filters are constructed with naturally hydrophobic PTFE membrane and polypropylene support layers and components. The HIMA retentive PTFE membrane offers superior hydrophobicity and water intrusion resistance compared to PVDF and polypropylene membranes, and the cartridge construction offers a cost-effective alternative to all fluorocarbon filters. TefTEC filters are ideal for gas/vent applications and the filtration of aggressive chemicals and solvents.

TefTEC Filter Features–Benefits

High surface area, single-layer construction provides superior flow rates and minimizes filtration system size
100% Flushed with DI water and integrity tested
Meets applicable CFR criteria and USP Class VI Biological Test for Plastics
Filters are manufactured in an ISO Class 7 Cleanroom Environment
Filters are flushed, tested and packaged in a Class ISO 7 clean room
Manufactured using current Good Manufacturing Practices
Each filter element stamped with pore size, lot and serial number for identification and traceability

Applications

Aggressive chemicals • Tank Vents • Strong acids/bases • Compressed gases • Solvents • Photoresists • Pharmaceutical Intermediates • Hot DI water • Fermentation air

Graver TEFTEC Membrane filter Cartridge Download Brochure

Crystal MBF Series Economical Melt Blown Depth Filter Cartridges

Melt Blown Filters

An economical, disposable, filter element that can be used in a wide range of applications. The Crystal MBF depth filter is constructed of 100% polypropylene media for chemical compatibility with a variety of process fluids. The unique Crystal Core prevents collapse even at elevated temperatures.

Crystal MBF Series Economical Melt Blown Depth Filter Cartridges

NSF 61 Certified
Nominal Micron Ratings – 1, 3, 5, 10, 20, 30, 50, 75
Multi-zone construction for a true graded pore structure
100% pure polypropylene – FDA listed, USP Class VI compliant
Most popular end styles available
Continuous lengths up to 50″
Similar efficiencies to competitive products for ease of replacement
Bulk bag option for high volume users

Typical Applications

Food & Beverages
Aqueous solutions
Wastewat
RO prefiltration
Chemicals

Graver Crystal MBF Depth Filter Download brochure

Yarn Wound Filter Cartridges – Manufactured by Germ Africa

Germ Africa manufacture a conventional string/yarn wound filter cartridge in Johannesburg. Our facility has been manufacturing yarn wound filter cartridges for over 10 years.

The string wound filter cartridges include the following configurations

All cartridges come in 10″ 20″ 30″ 40″ lengths with various µ (micron) ratings.

We pride ourselves on the quality of these liquid filter cartridges and continue to offer clients quality and consistency of product output.

Flowrite Yarn-Wound Cartridge Download

Flowrite FH138 clear bowl filter housings

Flowrite Clear Bowl Filter Housing

Flowrite “FH138” clear bowl filter cartridge housings are suitable for use in most liquid filtration applications. Constructed from polyethylene terephthalate [PET], the most common thermoplastic polymer resin, allowing for a wide range of industrial and domestic uses.

The housing is suitable for most 9¾” and 10″ double open-ended filter cartridges. The Flowrite housing has ¾” NPT threaded connections with a “screw-type” pressure relief valve, which allows easy filter change-out.

Options are available for wall-mounting (optional brackets available) or plumbed in-line and it has a buttress-type thread providing easy removal of sump for cartridge removal. The filter can then be removed by closing the inlet valve and opening the sump. This housing is for use on liquid service only. Not suitable for gas and manufacturing fluids.

Features

Clear housings provide instant examination of filter elements without sump removal.
Opaque housings suitable for installation in sunny conditions.
Robust design for strength.
Corrosion resistant plastic materials compatible with most chemicals.

Benefits

Fits most piping systems.
Minimum space requirement for given flow.

Flowrite FH138 Housing Download brochure

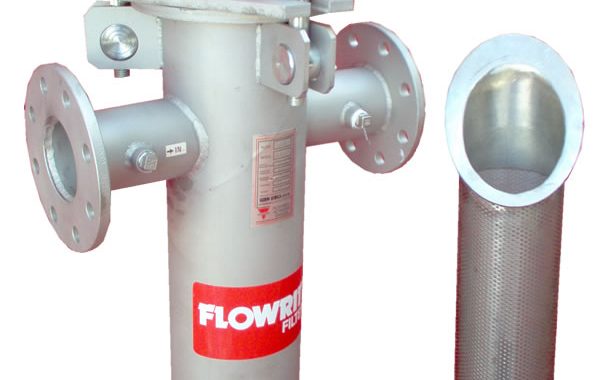

Flowrite PS series in line basket strainer

The Flowrite “PS” series in-line basket strainers utilize modern engineering techniques to provide a strong, robust strainer with a maximum pressure rating of 1000 kPa.

Flowrite “PS” series strainers are made from durable 304 stainless steel to ensure years of maintenance-free, reliable service. They are fitted with uniquely designed, oversized mesh-lined strainer baskets for low operating pressure drop and maximum dirt holding capacity.

One of the useful features of the “PS” strainer range is the unit’s cover which is secured by three simple and durable swing bolts to provide easy access to the strainer basket for cleaning.

Flowrite “PS” strainers are the perfect, easy-to-use protection for pumps, valves, piping and reticulation systems.

Features & benefits

All stainless steel
Low maintenance and excellent chemical resistance

Swing-bolt closure
Quick access, no-special-tools access to the strainer baskets. Durable and robust

Oversized basket
Maximum service intervals and highest dirt holding capacity

In-line construction
Installs easily into existing lines

Mesh lined basket
Various micron ratings are available. Wash clean & re-use

Flowrite PS Series – In line basket strainer Download

Flowrite 1FS2 Bag Filter housing

The Flowrite “xFSi2” series bag filter housings utilise modern engineering techniques to provide a robust vessel with a maximum pressure rating of 1000 kPa. Flowrite “FS” series housings are made from durable 304 or 316 stainless steel to ensure years of maintenance-free, reliable service. They are free-standing and are fitted standard with 50mm or 80mm flanged inlet and outlet connections. Other sizes are available on request.

Flowrite “FS” Series bag filter housings are the automatic choice for safe, trouble-free and cost-effective filtration.

Amongst the many features of the “FS” series housings are covers secured by four swing-bolts to allow quick, easy access to the filter bag.
Internally, the filter bag is securely supported by a stainless steel perforated plate basket to provide maximum strength and minimum flow resistance.
Bag-to-housing seal is assured by FSI’s proven Polyloc® ring sealing method.

The Polyloc® ring ensures that no bypass occurs during the filtration process. The Flowrite FSI2 housing is a standard double-length vessel (industry standard D/L 32″ filter bags) and is available in multiple bag configurations. From a1-bag up to a 12-round bag housing thereby providing one vessel for the flow rate required for your application.

Features & benefits

All stainless steel
Low maintenance and excellent chemical resistance
Swing Bolt Closure
Quick, no-tools access to the filter cartridges
Drain & gauge ports
Versatile threaded ports for simple multi-tasking
Cover vent port
Easy, safe venting prior to start-up
Versatile filter bags
Many materials and filtration ratings available

Flowrite FSI Bag Filter Housing Download Brochure

PC Series – Basket Strainer

The Flowrite “PC” in-line strainer series utilises modern engineering techniques to provide a strong, robust strainer with a maximum pressure rating of 1000 kPa. Flowrite “PC” series strainers are made from economical, durable carbon steel to ensure years of maintenance-free, reliable service.

They ares fitted with uniquely designed, stainless steel, mesh-lined baskets which are oversized for low operating pressure drop and maximum dirt holding capacity. One of the useful features of the “PC” range is the unit’s cover which is secured by three simple and durable swing bolts to provide easy access to the strainer basket for cleaning.

Flowrite “PC” series are the economical, easy-to-use protection for pumps, valves, piping and reticulation systems.

Flowrite PC IN-Line Basket Strainer Download brochure

Flowrite Tank Breather Filter

Flowrite “TB” Series

Flowrite “TB” Series Tank breather filters are fabricated from 304-Stainless Steel. They are designed for a maximum operating pressure of 100 kPa at80ºC, depending on cartridges fitted. The “TB” Series housings feature Flowrite’s well proven centre post and nut design. Cartridges are located by their own end seals and a securing plate to which is attached a perforated stainless steel shield which allows free passage for the entering and exiting air during tank emptying and filling cycles.

The cartridges have double ”O” rings which give a perfect seal between cartridges and housing, thus eliminating any possibility of bypass. The practical and sturdy design of these housings allows quick and convenient cartridge change out of the 9¾” modular length filter cartridges.

Flowrite “TB” Series filter housings are available in one, two, three & four cartridge configurations to minimize pressure drop, and thus protect the tank from differential pressures while emptying or filling. The inlet port can be threaded or flanged to your specifications, and the unit is supplied in electro polished finish suitable for most semi and non-sanitary applications.

The housing should be used in conjunction with hydrophobic cartridges with a micron rating to your specification, which are also available from Flowrite

FEATURES & BENEFITS

Electro-polished, stainless steel construction
Suitable for most semi- & non-sanitary applications

Centre post & nut design
Quick, easy and convenient access to the filter cartridges

Integral locators & double “O” rings
Positive cartridge location and sealing eliminates bypass

Easy mounting
Flanged or threaded bottom inlet makes for direct, convenient, tank-top mounting

2-Piece construction
Easy to clean and versatile design

Flowrite “TB” Tank Breather filters are custom designed and made to order. Thus, when ordering or enquiring, please specify:

The tank volume
The liquid contained in the tank
The inflow and outflow rates
The operating temperature
The degree of filtration required
Suitable materials of construction

Once this information is available, a detailed, no obligation quotation for suitable housings and filter cartridges can be provided.

Flowrite Tank Breather Filters Download

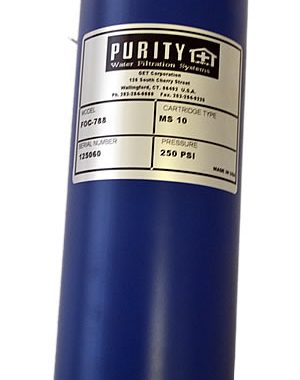

FOC – Single Filter cartridge Housing

Single Cartridge Housing for Liquids

The single shell design has been a standard in the industry for over 30 years. The FOC range is available in a cast iron head with a carbon steel body. The Maximum operating pressure on the units is 250psig (17 bar) @ 275°F

The FOC series is available in a wide range of connection sizes to fit your application as well as a wide variety of gasket options that make this housing compatible with almost any fluid. The standard gasket material is Buna-N.

Features

Designed for industrial and commercial filtration needs
Heavy duty construction for durability
Offered in a wide variety of materials
Simple bolt-n-nut design for quick cartridge change outs
In line fittings for easy installation
Knife edge seal at both cartridge ends to eliminate by-pass
Housings accept double-open-end cartridges

Standard Design Specifications

Model	Material	Cartridge Length	Pipe Size FNPT	Options	Gasket
FO	C Cast iron Head with Carbon Steel sump	78= 9 ¾ 80 20”	6=3/4” 8=1”	NPT	Blank = Buna E = EPR S = Silicone V = Viton

Applications
