EMEC

PRISMA Dosing Pump

The PRISMA dosing pumps: the incomparable accuracy of the stepper motor – EMEC.

EMEC is proud to introduce the new stepper motor-driven dosing pump- PRISMA, the best solution for high-accuracy metering and extreme reliability.

Thanks to the new stepper motor and to the Multi-Function software, the PRISMA dosing pump offers complete control over dosing speeds. Working modes as well as great flexibility and repeatability, meeting even particularly complex application needs.

The PRISMA is also equipped with Level control, Alarms and Stand-by, while available working modes include Constant, Constant with external input, ppm, %, mlq, Pause-work, Weekly, mA, Pulse, Volt, external Batch and manual Batch.

The PRISMA dosing pumps feature the encoder control knob for quick browsing through the configuration menus. A large display screen allows for easy control and to regulate the working parameters. By changing background colors the PRISMA back-light display is capable of signaling different working status: pump running (green); stand-by (white); warning condition (yellow); alarm condition (red).

[YouTube_WD id=”4″]

TURNDOWN

The PRISMA stepper motor-driven pumps give you the most accurate control over the stroke speed, providing an outstanding turn-down ratio of up to 4800:1.

It means that the PRISMA, through its digital multi-function control, can split up the dosing process into a maximum of 4800 steps. This is in order to offer the most homogeneous and precise distribution of the product to dose according to the required application.

SLOW MODE

The extreme versatility of the PRISMA dosing pump is also due to Slow Mode function. With Slow Mode enabled you can reduce the suction speed to 75, 50 or 25% of the normal speed, making easier, more reliable and extremely accurate the priming and the dosing, even when you have to handle particularly viscous liquids.

CAPACITY RANGE

The PRISMA stepper motor-driven pumps are available with dosing capacity of 5, 13, 28 and 80 l/h at a working pressure of 20, 10, 5 and 2 bar, respectively.

Prisma-newDownload

High Flow Series Filter Cartridges

Large Geometry Pleated Filters for High Flow

Graver High Flow Series filters feature a larger geometry to handle higher flows with fewer filter elements. The result is much faster, easier filter changeouts. In addition, the inside to outside flow allows for excellent dirt holding capacity, extending the time between filter changeouts.

Filter housings are also available and because of the filters high flow and dirt holding capacity, smaller systems are possible, reducing upfront capital costs.

High Flow Series Features – Benefits

  • 6” diameter, large geometry for high flows
  • Absolute retention ratings from 1 to 100 microns
  • Capable of flow rates up to 500 GPM in a single 60” element
  • FDA listed materials of construction
  • Inside-out flow retains contaminant even during change-out
  • Multi layer pleated construction with optimized surface area
  • Outer cage prevents media extrusion problem experienced with some competitive offerings
  • Unique Quad Seal gasket provides maximum seal integrity
  • Retrofits competitive high flow filter housings
  • Thermally bonded construction

Filter Specifications

Media: Polypropylene
Inner core: Polypropylene
Gaskets/O-Rings options:

EPDM, Silicone, Buna N, Viton
Micron ratings:

1, 3, 5, 10, 20, 40, 60, 100 μm
*Other micron rated media available upon request
Dimensions and Operating Parameters
Nominal lengths:

50.8, 101.6, 152.4 cm
Outside diameter:

6.0 in (15.2 cm)
Maximum operating temperature: 80°C
Differential pressure:

180°F@ 20psid (82°C @1.4 bar)

160°F@ 30psid (71°C @2.1 bar)

77°F @ 50psid (25°C @ 3.4 bar)
Recommended changeout  pressure for disposal: 35 psid (2.4 bar)

Maximum flow rates:

60” element up to 500 GPM (1892 lpm)

40” element up to 350 GPM (1325 lpm)

20” element up to 175 GPM (662 lpm)

Filter Removal Efficiency

Beta Ratio Efficiency Beta 1000 99.9% Beta 100 99% Beta 10 90%
1 micron 1 0.6 0.2
3 micron 3 2 1.5
5 micron 5 4 3
10 microns 10 8.5 6.5
20 microns 22 19 14
40 microns 38 18 15
60 microns 60 35 20
100 Micron 100 75 45
Beta Ratio =
Upstream particle counts
Downstream particle counts
Graver HF – PolypropyleneDownload brochure
FILTER CARTRIDGES FROM GERM AFRICA

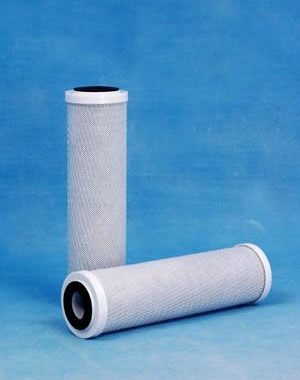

Activated Carbon Block Filter cartridge

Patented extrusion process produces an activated carbon block filter with superior ability to adsorb chlorine, taste, odour, organics, and colour components for taste filtration.

Filter Features – Benefits

  • High adsorptive capacity and efficiency
  • More carbon at lower pressure drop than granular carbon
  • Outer melt blown wrap provides particulate removal capability
  • Minimal release of carbon fines
  • No channelling, fluidizing or bypass
  • Performance tested and verified by independent laboratory
  • Manufactured using FDA listed materials of construction
  • Cyst+ is a cyst reduction filter tested in accordance with ANSI/NSF Standard 53*
  • Coco+ features coconut shell carbon for improved water taste
  • NSF Components (Standard 42)

*Performance Tested and Verified by Independent Laboratory Testing.

For housing to be used with this filter our FH range of filter cartridge housing will provide you an all in one provider for your solution.

https://www.germafrica.com/filter-housing/>

Filter Specifications

End caps: Polypropylene
End Caps Adhesive: Low Density Polyethylen
End Configuration: Double Open End
Gaskets:
 Santoprene
Binder:  Polyethylene
Outer Wrap: Melt Blown Poly-prop
Netting: Polypropylene
Operating Parameters

Maximum Operating Temperature
 125 F (52 C)
Maximum Differential Pressure
100 psid (6.9 bar)
Maximum Operating Pressure
250 psig (17.2 bar)
Collapse Pressure
 200 psid (13.8 bar)
 Steam/Autoclave
Do not steam or autoclave COT+9″75 filters
Flush – Filters should be flushed for a minimum of 5 minutes prior to use

Applications

Drinking Water • Cyst Reduction • Chlorine Removal • Bottled Water • Color removal • Soft Drinks • Flavor removal

NSF – The Carbtec filter is Tested and Certified by NSF International against NSF/ANSI standard 42 for material requirements only

Carbon Block filter Cartridge KX-COTDownload brochure

Stratum C Series – Melt Blown Cartridges

The most advanced melt blowing equipment available is used to create Stratum Series Filter Cartridges. By tightly controlling the manufacturing environment and through use of top-of-the-line microprocessors, we are able to precisely control the process conditions to produce the most reliable, consistently performing melt blown filter on the market today.

Absolute and Nominal Rated

Absolute and Nominal Rated Stratum Series advanced melt blown filter cartridges are available in high performance grades from 0.5 to 75 microns. Whether your process requires the highest efficiency 99.9% rated Stratum A Series, or the 90% nominal efficiency Stratum C series, you can count on the most advanced performance available from a melt blown filter.

High Purity Construction

Stratum filters are made with 100% virgin polypropylene and are free of surfactants, binders and adhesives. They are manufactured in a controlled environment to prevent contamination. The chemically inert polypropylene assures that the Stratum filters can be utilized in a wide range of applications, including the most critical of processes. Stratum filters are constructed of FDA listed materials and tests prove they meet the requirements of USP Class VI. Spent filters can be
incinerated to trace ash.

Filter Features–Benefits

    • Thermally bonded fibers for high void volume and long on-stream life
    • Available in precise 90% removal efficiencies from 0.5 to 75 microns
    • 100% polypropylene FDA listed materials of construction
    • All components meet USP Class IV criteria and are safe for use in pharmaceutical applications
    • Molded center core for higher temperature and pressure capability
    • Free of surfactants, binders and adhesives
    • Certified to NSF/ANSI 61 for materials requirem

Applications

» Chemicals
» Paint/Ink
» Petrochemicals
» Plating
» Beverages
» Pulp and Paper
Filter Cartridges

Filtration and Particle removal

Filtration

The Filtration Division of Germ Africa offer a wide range of locally manufactured and imported filtration related products including:

Our fields of expertise extend to the following areas where we can help you achieve your aims.

  • Water Purification

–Ion exchange resins and back washable filters for condensate polishing and ultra pure water applications

  • Trace Contaminant Reduction

–Adsorbent media for removing organic, inorganic and heavy metal impurities from industrial and aqueous fluids

  • Process Filtration

–Liquid, air and gas filters and cross flow membranes for clarification of industrial and critical process streams

Our exclusive range of imported filter cartridges are supplied by Graver Technologies of the USA.

Whilst we manufacture as well as import a range of filter bags from FSI/PALL, these bags are primarily used in the automotive sector due to their speciality in nature.

Our South African manufactured filtration range of products are marketed under the brand name Flowrite, we manufacture yarn wound filter cartridges as well as resin bonded filter cartridges.

The products supplied and supported by the Filtration Division are primarily geared towards the filtration of liquids and compressed gasses. These products are typically reticulated in piping systems from 15mm diameter upwards, and at pressures from 20 bar down, and the product range of the Division reflects this.

Our Mission in the filtration division is:

–To provide value-added products and innovative technological solutions for process filter markets.

Vision

–To be a leading provider of liquid process filters in our served markets.

–To be a preferred partner of our customers by providing high quality products and outstanding service.

–To grow profitably, thereby increasing customer loyalty and stakeholder value.

However, special-duty products can be designed for almost any application.

The Filtration Division products are currently providing reliable, efficient and low-cost service in many industries, including:

  • Pulp & Paper
  • Auto-Manufacturing
  • Petro-Chemical
  • Food & Beverage
  • Paints & Coatings
  • Domestic Water
  • Power Generation
  • Steel Mills
  • Wines & Spirits
